一、 组网需求：

所有的交换机都运行OSPF，并将整个自治系统划分为3个区域。

其中Switch A和Switch B作为ABR来转发区域之间的路由。

配置完成后，每台交换机都应学到AS内的到所有网段的路由。

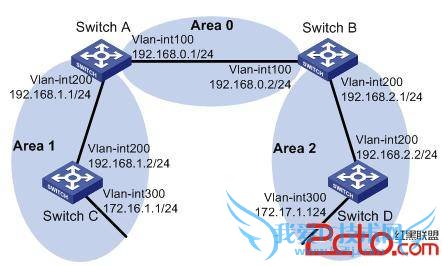

二、 组网图：

三、 配置步骤：

(1) 配置各接口的IP地址(此处略)

(2) 配置OSPF基本配置

# 配置Switch A。

system-view

[SwitchA] ospf

[SwitchA-ospf-1] area 0

[SwitchA-ospf-1-area-0.0.0.0] network 192.168.0.0 0.0.0.255

[SwitchA-ospf-1-area-0.0.0.0] quit

[SwitchA-ospf-1] area 1

[SwitchA-ospf-1-area-0.0.0.1] network 192.168.1.0 0.0.0.255

[SwitchA-ospf-1-area-0.0.0.1] quit

[SwitchA-ospf-1] quit

# 配置Switch B。

system-view

[SwitchB] ospf

[SwitchB-ospf-1] area 0

[SwitchB-ospf-1-area-0.0.0.0] network 192.168.0.0 0.0.0.255

[SwitchB-ospf-1-area-0.0.0.0] quit

[SwitchB-ospf-1] area 2

[SwitchB-ospf-1-area-0.0.0.2] network 192.168.2.0 0.0.0.255

[SwitchB-ospf-1-area-0.0.0.2] quit

[SwitchB-ospf-1] quit

# 配置Switch C。

system-view

[SwitchC] ospf

[SwitchC-ospf-1] area 1

[SwitchC-ospf-1-area-0.0.0.1] network 192.168.1.0 0.0.0.255

[SwitchC-ospf-1-area-0.0.0.1] network 172.16.1.0 0.0.0.255

[SwitchC-ospf-1-area-0.0.0.1] quit

[SwitchC-ospf-1] quit

# 配置Switch D。

system-view

[SwitchD] ospf

[SwitchD-ospf-1] area 2

[SwitchD-ospf-1-area-0.0.0.2] network 192.168.2.0 0.0.0.255

[SwitchD-ospf-1-area-0.0.0.2] network 172.17.1.0 0.0.0.255

[SwitchD-ospf-1-area-0.0.0.2] quit

[SwitchD-ospf-1] quit

(3) 检查配置结果

# 查看Switch A的OSPF邻居。

[SwitchA] display ospf peer verbose

OSPF Process 1 with Router ID 192.168.0.1

Neighbors

Area 0.0.0.0 interface 192.168.0.1(Vlan-interface 100)'s neighbors

Router ID: 192.168.0.2 Address: 192.168.0.2 GR State: Normal

State: Full Mode:Nbr is Master Priority: 1

DR: 192.168.0.2 BDR: 192.168.0.1 MTU: 0

Dead timer due in 36 sec

Neighbor is up for 00:15:04

Authentication Sequence: [ 0 ]

Neighbor state change count: 3

Neighbors

Area 0.0.0.1 interface 192.168.1.1(Vlan-interface 200)'s neighbors

Router ID: 172.16.1.1 Address: 192.168.1.2 GR State: Normal

State: Full Mode:Nbr is Slave Priority: 1

DR: 192.168.0.1 BDR: 172.16.1.1 MTU: 0

Dead timer due in 39 sec

Neighbor is up for 00:07:32

Authentication Sequence: [ 0 ]

Neighbor state change count: 2

# 显示Switch A的OSPF路由信息。

[SwitchA] display ospf routing

OSPF Process 1 with Router ID 192.168.0.1

Routing Tables

Routing for Network

Destination Cost Type NextHop AdvRouter Area

172.16.1.0/24 1563 Stub 192.168.1.2 172.16.1.1 0.0.0.1

172.17.1.0/24 3125 Inter-area 192.168.0.2 192.168.2.1 0.0.0.0

192.168.1.0/24 1562 Stub 192.168.1.1 192.168.0.1 0.0.0.1

192.168.2.0/24 3124 Inter-area 192.168.0.2 192.168.2.1 0.0.0.0

192.168.0.0/24 1562 Stub 192.168.0.1 192.168.0.1 0.0.0.0

Total Nets: 5

Intra Area: 3 Inter Area: 2 ASE: 0 NSSA: 0

# 显示Switch A的LSDB。

[SwitchA] display ospf lsdb

OSPF Process 1 with Router ID 192.168.0.1

Link State Data Base

Area: 0.0.0.0

Type LinkState ID AdvRouter Age Len Sequence Metric

Router 192.168.2.1 192.168.2.1 874 48 80000006 1562

Router 192.168.0.1 192.168.0.1 976 48 80000005 1562

Sum-Net 192.168.1.0 192.168.0.1 630 28 80000001 1562

Sum-Net 172.17.1.0 192.168.2.1 411 28 80000001 1563

Sum-Net 192.168.2.0 192.168.2.1 429 28 80000001 1562

Sum-Net 172.16.1.0 192.168.0.1 565 28 80000001 1563

Area: 0.0.0.1

Type LinkState ID AdvRouter Age Len Sequence Metric

Router 192.168.1.2 192.168.1.2 964 48 80000003 1562

Router 192.168.0.1 192.168.0.1 590 48 80000002 1562

Router 172.16.1.1 172.16.1.1 526 60 80000005 1562

Sum-Net 172.17.1.0 192.168.0.1 410 28 80000001 3125

Sum-Net 192.168.2.0 192.168.0.1 428 28 80000001 3124

Sum-Net 192.168.0.0 192.168.0.1 630 28 80000001 1562

# 查看Switch D的路由表。

[SwitchD] display ospf routing

OSPF Process 1 with Router ID 192.168.2.2

Routing Tables

Routing for Network

Destination Cost Type NextHop AdvRouter Area

172.16.1.0/24 4687 Inter-area 192.168.2.1 192.168.2.1 0.0.0.2

172.17.1.0/24 1 Stub 172.17.1.1 192.168.2.2 0.0.0.2

192.168.1.0/24 4686 Inter-area 192.168.2.1 192.168.2.1 0.0.0.2

192.168.2.0/24 1562 Stub 192.168.2.2 192.168.2.2 0.0.0.2

192.168.0.0/24 3124 Inter-area 192.168.2.1 192.168.2.1 0.0.0.2

Total Nets: 5

Intra Area: 2 Inter Area: 3 ASE: 0 NSSA: 0

# 使用Ping进行测试连通性。

[SwitchD] ping 172.16.1.1

PING 172.16.1.1: 56 data bytes, press CTRL_C to break

Reply from 172.16.1.1: bytes=56 Sequence=1 ttl=253 time=62 ms

Reply from 172.16.1.1: bytes=56 Sequence=2 ttl=253 time=16 ms

Reply from 172.16.1.1: bytes=56 Sequence=3 ttl=253 time=62 ms

Reply from 172.16.1.1: bytes=56 Sequence=4 ttl=253 time=94 ms

Reply from 172.16.1.1: bytes=56 Sequence=5 ttl=253 time=63 ms

--- 172.16.1.1 ping statistics ---

5 packet(s) transmitted

5 packet(s) received

0.00% packet loss

round-trip min/avg/max=16/59/94 ms

四、 配置关键点：无。
