邻居子系统：地址解析协议简析

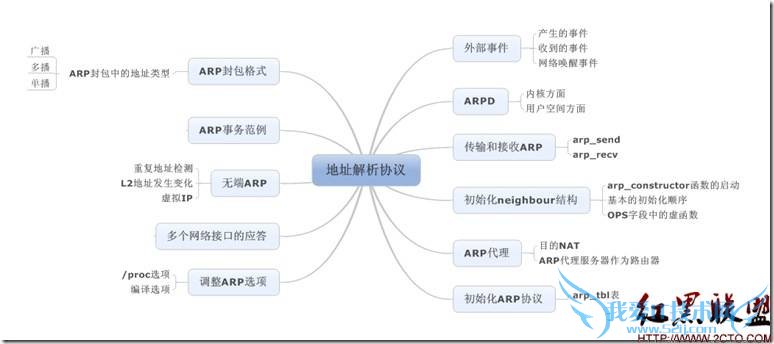

无端ARP
一般来说，发出一个ARPOP_REQUEST是由于发送方想和一个IP地址通信，需要找到其对应的L2地址。但有时候，发送方生成一个ARPOP_REQUEST是为了通知接收方一些信息，而不是请求信息。这种封包就称为无端ARP，它通常用在下面列出的情况中：
L2地址发生变化，改变地址的节点通过无端ARP来触发L2和L3的关联更新
重复地址检测，同一个局域网中不应该出现在有两台主机有相同的L3地址，但这种情况总会发生。主机可以使用无端ARP来检测重复地址的存在。如果你发出一个目的地是你自己地址的ARP请求，那么只有当存在一台与你相同ip配置的主机时，才会受到应答
虚拟IP，故障迁移。通常为了使一个站点有冗余度，该站点除了有一台活跃服务器外，还有一定数量的配置类似的主机处于备用模式。当活跃服务器由于某些原因宕机后，与heartbeat定时器相关一个机制就会检测到这个故障，并启动新活跃服务器的选择。这个服务器会生成一个无端ARP包来更新网络中的所有其他主机上的ARP缓存。因为新服务器继承了就服务器的ip地址，发出的ARPOP_REQUESE不会被应答，但所有的接收者会更新它们的缓存。
调整ARP选项
编译选项
ARPD(CONFIG_ARPD),这个选项允许用户空间的守护进程处理ARP包，这样做在超大型且流量比较大的网络中，可以提高传输性能。
/proc选项
这个选项中的大部分特性可以配置为全局的，也可以给每个设备单独配置。
初始化ARP协议
1: void __init arp_init(void)
2: {
3: neigh_table_init(&arp_tbl);
4:
5: dev_add_pack(&arp_packet_type);
6: arp_proc_init();
7: #ifdef CONFIG_SYSCTL
8: neigh_sysctl_register(NULL, &arp_tbl.parms, NET_IPV4,
9: NET_IPV4_NEIGH, "ipv4", NULL, NULL);
10: #endif
11: register_netdevice_notifier(&arp_netdev_notifier);
12: }

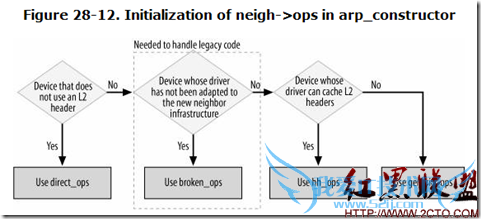

初始化函数首先是注册一个虚函数表和ARP协议是用的其他常用参数；这个工作由neigh_table_init函数完成。dev_add_pack主要用于注册接收封包函数，arp_proc_init函数会建立/proc/net/arp文件，读取该文件就可以看到ARP缓存的内容。若内核支持sysctl，就能依靠neigh_sysctl_register创建目录/proc/sys/net/ipv4/neigh，用于输出neigh_parms结构的默认调节参数。register_netdevice_notifier向内核注册一个回调函数，用于接收设备状态和配置变化的通知。
arp_tbl表
1: struct neigh_table arp_tbl={
2: .family= AF_INET,
3: .entry_size= sizeof(struct neighbour) + 4,
4: .key_len= 4,
5: .hash= arp_hash,
6: .constructor= arp_constructor,
7: .proxy_redo= parp_redo,
8: .id= "arp_cache",
9: .parms={
10: .tbl= &arp_tbl,
11: .base_reachable_time= 30 * HZ,
12: .retrans_time= 1 * HZ,
13: .gc_staletime= 60 * HZ,
14: .reachable_time= 30 * HZ,
15: .delay_probe_time= 5 * HZ,
16: .queue_len= 3,
17: .ucast_probes= 3,
18: .mcast_probes= 3,
19: .anycast_delay= 1 * HZ,
20: .proxy_delay= (8 * HZ) / 10,
21: .proxy_qlen= 64,
22: .locktime= 1 * HZ,
23: },
24: .gc_interval= 30 * HZ,
25: .gc_thresh1= 128,
26: .gc_thresh2= 512,
27: .gc_thresh3= 1024,
28: };
初始化neighbour结构
1: static int arp_constructor(struct neighbour *neigh)
2: {
3: __be32 addr=*(__be32*)neigh->primary_key;
4: struct net_device *dev=neigh->dev;
5: struct in_device *in_dev;
6: struct neigh_parms *parms;
7:
8: rcu_read_lock();
9: in_dev=__in_dev_get_rcu(dev);
10: if (in_dev==NULL) {
11: rcu_read_unlock();
12: return -EINVAL;
13: }
14:
15: neigh->type=inet_addr_type(dev_net(dev), addr);
16:
17: parms=in_dev->arp_parms;
18: __neigh_parms_put(neigh->parms);
19: neigh->parms=neigh_parms_clone(parms);
20: rcu_read_unlock();
21:
22: if (!dev->header_ops) {
23: neigh->nud_state=NUD_NOARP;
24: neigh->ops=&arp_direct_ops;
25: neigh->output=neigh->ops->queue_xmit;
26: } else {
27:
41:
42: #if 1
43:
54: switch (dev->type) {
55: default:
56: break;
57: case ARPHRD_ROSE:
58: #if defined(CONFIG_AX25) || defined(CONFIG_AX25_MODULE)
59: case ARPHRD_AX25:
60: #if defined(CONFIG_NETROM) || defined(CONFIG_NETROM_MODULE)
61: case ARPHRD_NETROM:
62: #endif
63: neigh->ops=&arp_broken_ops;
64: neigh->output=neigh->ops->output;
65: return 0;
66: #endif
67: ;}
68: #endif
69: if (neigh->type==RTN_MULTICAST) {
70: neigh->nud_state=NUD_NOARP;
71: arp_mc_map(addr, neigh->ha, dev, 1);
72: } else if (dev->flags&(IFF_NOARP|IFF_LOOPBACK)) {
73: neigh->nud_state=NUD_NOARP;
74: memcpy(neigh->ha, dev->dev_addr, dev->addr_len);
75: } else if (neigh->type==RTN_BROADCAST || dev->flags&IFF_POINTOPOINT) {
76: neigh->nud_state=NUD_NOARP;
77: memcpy(neigh->ha, dev->broadcast, dev->addr_len);
78: }
79:
80: if (dev->header_ops->cache)
81: neigh->ops=&arp_hh_ops;
82: else
83: neigh->ops=&arp_generic_ops;
84:
85: if (neigh->nud_state&NUD_VALID)
86: neigh->output=neigh->ops->connected_output;
87: else
88: neigh->output=neigh->ops->output;
89: }
90: return 0;
91: }
1: static const struct neigh_ops arp_generic_ops={
2: .family= AF_INET,
3: .solicit= arp_solicit,
4: .error_report= arp_error_report,
5: .output= neigh_resolve_output,
6: .connected_output= neigh_connected_output,
7: .hh_output= dev_queue_xmit,
8: .queue_xmit= dev_queue_xmit,
9: };
10:
11: static const struct neigh_ops arp_hh_ops={
12: .family= AF_INET,
13: .solicit= arp_solicit,
14: .error_report= arp_error_report,
15: .output= neigh_resolve_output,
16: .connected_output= neigh_resolve_output,
17: .hh_output= dev_queue_xmit,
18: .queue_xmit= dev_queue_xmit,
19: };
20:
21: static const struct neigh_ops arp_direct_ops={
22: .family= AF_INET,
23: .output= dev_queue_xmit,
24: .connected_output= dev_queue_xmit,
25: .hh_output= dev_queue_xmit,
26: .queue_xmit= dev_queue_xmit,
27: };
28:
29: const struct neigh_ops arp_broken_ops={
30: .family= AF_INET,
31: .solicit= arp_solicit,
32: .error_report= arp_error_report,
33: .output= neigh_compat_output,
34: .connected_output= neigh_compat_output,
35: .hh_output= dev_queue_xmit,
36: .queue_xmit= dev_queue_xmit,
37: };

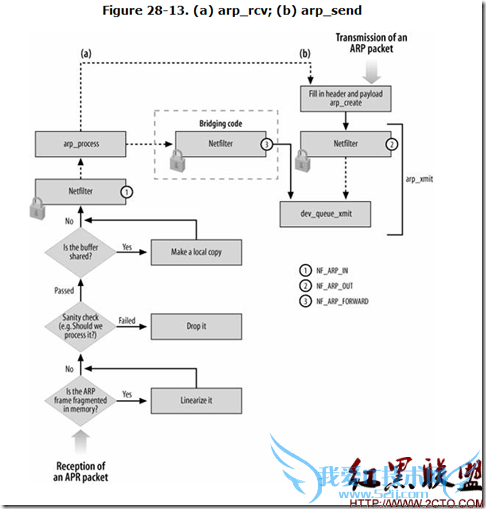

传输和接收ARP包
arp_send：
1: static void arp_solicit(struct neighbour *neigh, struct sk_buff *skb)
2: {
3: __be32 saddr=0;
4: u8 *dst_ha=NULL;
5: struct net_device *dev=neigh->dev;
6: __be32 target=*(__be32*)neigh->primary_key;
7: int probes=atomic_read(&neigh->probes);
8: struct in_device *in_dev=in_dev_get(dev);
9:
10: if (!in_dev)
11: return;
12:
13: switch (IN_DEV_ARP_ANNOUNCE(in_dev)) {
14: default:
15: case 0:
16: if (skb && inet_addr_type(dev_net(dev), ip_hdr(skb)->saddr)==RTN_LOCAL)
17: saddr=ip_hdr(skb)->saddr;
18: break;
19: case 1:
20: if (!skb)
21: break;
22: saddr=ip_hdr(skb)->saddr;
23: if (inet_addr_type(dev_net(dev), saddr)==RTN_LOCAL) {
24:
25: if (inet_addr_onlink(in_dev, target, saddr))
26: break;
27: }
28: saddr=0;
29: break;
30: case 2:
31: break;
32: }
33:
34: if (in_dev)
35: in_dev_put(in_dev);
36: if (!saddr)
37: saddr=inet_select_addr(dev, target, RT_SCOPE_LINK);
38:
39: if ((probes -=neigh->parms->ucast_probes) < 0) {
40: if (!(neigh->nud_state&NUD_VALID))
41: printk(KERN_DEBUG "trying to ucast probe in NUD_INVALID\n");
42: dst_ha=neigh->ha;
43: read_lock_bh(&neigh->lock);
44: } else if ((probes -=neigh->parms->app_probes) < 0) {
45: #ifdef CONFIG_ARPD
46: neigh_app_ns(neigh);
47: #endif
48: return;
49: }
50:
51: arp_send(ARPOP_REQUEST, ETH_P_ARP, target, dev, saddr,
52: dst_ha, dev->dev_addr, NULL);
53: if (dst_ha)
54: read_unlock_bh(&neigh->lock);
55: }
neigh，L3地址需要被解析的邻居；skb，保存数据封包的缓冲区，该封包的传输由solicitation请求触发。
skb缓冲区中IP头的源IP地址，和arp_solicit选择的要放到ARP头中的源IP地址，如果封包是本地网络产生的，IP包头中源IP地址就是本机的。若封包是要转发的，源IP地址就是最初发送方的
skb缓冲区IP包头中的目的地址，和arp_solicit请求解析的目的IP地址
arp_solicit的主要任务：
选择要放在ARP头中的源IP地址，区分内核生成的请求和用户空间产生的请求
对于内核生成的请求，使用arp_send传输solicitation请求
对于用户空间请求，arp_solicit调用neigh_app_ns来通知相应的用户空间程序：需要生成一个solicitation请求。如果内核不支持ARPD，arp_solicit就不做solicitation请求，直接返回。
更新生成的solicitation请求数目
使用arp_send函数传输请求

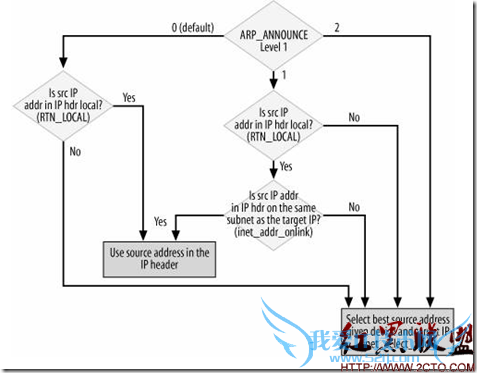

ARP_ANNOUNCE与源IP地址的选择：
大部分主机只有一个IP地址，因此将其直接拷贝到ARP头中。若一个主机有多个IP地址，ARP_ANNOUNCE的设置就会影响IP的选择。主要用到三个函数：
inet_addr_type，在该函数的输入参数中给一个IP地址，它就返回该地址的类型。RTN_LOCAL
inet_addr_onlink,输入一个设备和两个IP地址，该函数会检查这两个地址是否属于同一个子网
inet_select_add,输入一个设备，一个IP地址(通常不是本地主机的地址)和一个scope，该函数会在设备配置信息中查找这个IP地址，该地址应该和入口IP地址位于同一个子网中，并且给定的scope比入口scope小，或者相同。
