ASA5510与ASA5505（PPPOE获取地址）EzVPN配置

ASA5510与ASA5505（PPPOE获取地址）EzVPN配置

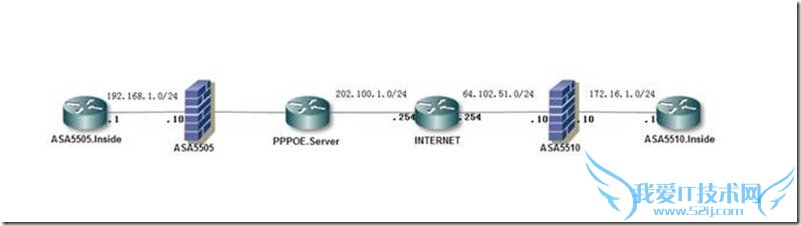

一：拓撲

本次试验的主要目标是展示三个重要的知识点

1.ASA5505如何配置EzVPN硬件客户端（注意ASA5510及其以上只能配置成为EzVPN服务器）。

2.ASA如何配置PPPOE客户端。

3.ASA5510上配置EzVPN网络扩展模式，一个容易被忽视的配置点。

二：需求

1. ASA5505通過PPPOE撥號訪問互聯網，並且保證內部網絡可以訪問互聯網

2. ASA5505作為EzVPN的硬件客戶端，ASA5510作为的EzVPN服务器

3. ASA5510要保證內部網絡可以訪問互聯網

4. 確定，ASA5505.Inside和ASA5510.Inside之間可以通過EzVPN互訪

三：配置

1. ASA5505.Inside

ASA5505.Inside#sh run

Building configuration...

Current configuration : 648 bytes

!

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname ASA5505.Inside

!

boot-start-marker

boot-end-marker

!

!

no aaa new-model

ip cef

!

!

!

!

no ip domain lookup

!

multilink bundle-name authenticated

!

!

!

!

!

archive

log config

hidekeys

!

!

!

!

!

!

!

interface FastEthernet0

ip address 192.168.1.1 255.255.255.0

speed auto

!

ip forward-protocol nd

ip route 0.0.0.0 0.0.0.0 192.168.1.10

!

!

no ip http server

no ip http secure-server

!

!

!

!

control-plane

!

!

line con 0

exec-timeout 0 0

logging synchronous

line aux 0

line vty 0 4

password cisco

login

!

end

2. ASA5505

ASA5505(config)# sh run

: Saved

:

ASA Version 8.0(5)

!

hostname ASA5505

enable password 8Ry2YjIyt7RRXU24 encrypted

passwd 2KFQnbNIdI.2KYOU encrypted

names

!

interface Vlan30

nameif outside

security-level 0

pppoe client vpdn group pppoe

ip address pppoe setroute

!

interface Vlan40

nameif inside

security-level 100

ip address 192.168.1.10 255.255.255.0

!

interface Ethernet0/0

switchport access vlan 30

!

interface Ethernet0/1

switchport access vlan 40

!

interface Ethernet0/2

shutdown

!

interface Ethernet0/3

shutdown

!

interface Ethernet0/4

shutdown

!

interface Ethernet0/5

shutdown

!

interface Ethernet0/6

shutdown

!

interface Ethernet0/7

shutdown

!

ftp mode passive

access-list out extended permit icmp any any

access-list bypass extended permit ip 192.168.1.0 255.255.255.0 172.16.1.0 255.255.255.0

pager lines 24

mtu outside 1500

mtu inside 1500

no failover

icmp unreachable rate-limit 1 burst-size 1

no asdm history enable

arp timeout 14400

global (outside) 1 interface

nat (inside) 1 192.168.1.0 255.255.255.0

access-group out in interface outside

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02

timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00

timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00

timeout sip-provisional-media 0:02:00 uauth 0:05:00 absolute

timeout tcp-proxy-reassembly 0:01:00

dynamic-access-policy-record DfltAccessPolicy

no snmp-server location

no snmp-server contact

snmp-server enable traps snmp authentication linkup linkdown coldstart

crypto ipsec security-association lifetime seconds 28800

crypto ipsec security-association lifetime kilobytes 4608000

telnet timeout 5

ssh timeout 5

console timeout 0

vpdn group pppoe request dialout pppoe

vpdn group pppoe localname pppoeuser1

vpdn group pppoe ppp authentication pap

vpdn username pppoeuser1 password *********

vpnclient server 64.102.51.10

vpnclient mode network-extension-mode

vpnclient nem-st-autoconnect

vpnclient vpngroup yeslab password ********

vpnclient username testuser1 password ********

vpnclient enable

threat-detection basic-threat

threat-detection statistics access-list

no threat-detection statistics tcp-intercept

webvpn

!

class-map inspection_default

match default-inspection-traffic

!

!

policy-map type inspect dns preset_dns_map

parameters

message-length maximum 512

policy-map global_policy

class inspection_default

inspect dns preset_dns_map

inspect ftp

inspect h323 h225

inspect h323 ras

inspect rsh

inspect rtsp

inspect esmtp

inspect sqlnet

inspect skinny

inspect sunrpc

inspect xdmcp

inspect sip

inspect netbios

inspect tftp

!

service-policy global_policy global

prompt hostname context

Cryptochecksum:947bd7e354635e160ddb59a18b6d59e3

: end

3.PPPOE.Server

PPPOE.Server#sh run

Building configuration...

Current configuration : 1064 bytes

!

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname PPPOE.Server

!

boot-start-marker

boot-end-marker

!

!

no aaa new-model

ip cef

!

!

!

!

no ip domain lookup

!

multilink bundle-name authenticated

vpdn enable

!

!

!

!

!

!

username pppoeuser1 password 0 cisco

archive

log config

hidekeys

!

!

!

!

!

!

bba-group pppoe global

virtual-template 1

!

!

interface FastEthernet0

no ip address

speed auto

!

interface FastEthernet0.10

encapsulation dot1Q 10

ip address 202.100.1.1 255.255.255.0

!

interface FastEthernet0.30

encapsulation dot1Q 30

pppoe enable group global

!

interface Virtual-Template1

ip unnumbered FastEthernet0.10

peer default ip address pool ippool

ppp authentication pap

!

ip local pool ippool 202.100.1.100 202.100.1.200

ip forward-protocol nd

ip route 0.0.0.0 0.0.0.0 202.100.1.254

!

!

no ip http server

no ip http secure-server

!

!

!

!

control-plane

!

!

line con 0

exec-timeout 0 0

logging synchronous

line aux 0

line vty 0 4

password cisco

login

!

end

4. INTERNET

Internet#sh run

Building configuration...

Current configuration : 788 bytes

!

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname Internet

!

boot-start-marker

boot-end-marker

!

!

no aaa new-model

memory-size iomem 25

ip cef

!

!

!

!

no ip domain lookup

!

multilink bundle-name authenticated

!

!

!

!

!

archive

log config

hidekeys

!

!

!

!

!

!

!

interface FastEthernet0

no ip address

speed auto

!

interface FastEthernet0.10

encapsulation dot1Q 10

ip address 202.100.1.254 255.255.255.0

!

interface FastEthernet0.20

encapsulation dot1Q 20

ip address 64.102.51.254 255.255.255.0

!

ip forward-protocol nd

!

!

no ip http server

no ip http secure-server

!

!

!

!

control-plane

!

!

line con 0

exec-timeout 0 0

logging synchronous

line aux 0

line vty 0 4

password cisco

login

!

end

5. ASA5510

ASA5510(config)# sh run

: Saved

:

ASA Version 8.0(2)

!

hostname ASA5510

enable password 8Ry2YjIyt7RRXU24 encrypted

names

!

interface Ethernet0/0

nameif outside

security-level 0

ip address 64.102.51.10 255.255.255.0

!

interface Ethernet0/1

nameif inside

security-level 100

ip address 172.16.1.10 255.255.255.0

!

interface Ethernet0/2

shutdown

no nameif

no security-level

no ip address

!

interface Ethernet0/3

shutdown

no nameif

no security-level

no ip address

!

interface Ethernet0/4

shutdown

no nameif

no security-level

no ip address

!

interface Ethernet0/5

shutdown

no nameif

no security-level

no ip address

!

passwd 2KFQnbNIdI.2KYOU encrypted

ftp mode passive

access-list out extended permit icmp any any

access-list split extended permit ip 172.16.1.0 255.255.255.0 any

access-list bypass extended permit ip 172.16.1.0 255.255.255.0 192.168.1.0 255.255.255.0

pager lines 24

mtu outside 1500

mtu inside 1500

ip local pool ezpool 123.1.1.100-123.1.1.200

no failover

icmp unreachable rate-limit 1 burst-size 1

no asdm history enable

arp timeout 14400

global (outside) 1 interface

nat (inside) 0 access-list bypass

nat (inside) 1 0.0.0.0 0.0.0.0

access-group out in interface outside

route outside 0.0.0.0 0.0.0.0 64.102.51.254 1

timeout xlate 3:00:00

timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 icmp 0:00:02

timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00

timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00

timeout uauth 0:05:00 absolute

dynamic-access-policy-record DfltAccessPolicy

no snmp-server location

no snmp-server contact

snmp-server enable traps snmp authentication linkup linkdown coldstart

crypto ipsec transform-set cisco esp-des esp-md5-hmac

crypto dynamic-map dymap 100 set transform-set cisco

crypto dynamic-map dymap 100 set reverse-route

crypto map cisco 10 ipsec-isakmp dynamic dymap

crypto map cisco interface outside

crypto isakmp enable outside

crypto isakmp policy 10

authentication pre-share

encryption 3des

hash md5

group 2

lifetime 86400

crypto isakmp policy 65535

authentication pre-share

encryption 3des

hash sha

group 2

lifetime 86400

no crypto isakmp nat-traversal

telnet timeout 5

ssh timeout 5

console timeout 0

threat-detection basic-threat

threat-detection statistics access-list

!

class-map inspection_default

match default-inspection-traffic

!

!

policy-map type inspect dns preset_dns_map

parameters

message-length maximum 512

policy-map global_policy

class inspection_default

inspect dns preset_dns_map

inspect ftp

inspect h323 h225

inspect h323 ras

inspect rsh

inspect rtsp

inspect esmtp

inspect sqlnet

inspect skinny

inspect sunrpc

inspect xdmcp

inspect sip

inspect netbios

inspect tftp

!

service-policy global_policy global

group-policy yeslabccies internal

group-policy yeslabccies attributes

split-tunnel-policy tunnelspecified

split-tunnel-network-list value split

nem enable

username testuser1 password i1lji/GiOWB67bAs encrypted

username testuser1 attributes

vpn-group-policy yeslabccies

tunnel-group yeslab type remote-access

tunnel-group yeslab general-attributes

address-pool ezpool

tunnel-group yeslab ipsec-attributes

pre-shared-key *

prompt hostname context

Cryptochecksum:edd654a1ddf97d90c02f2f55d1e9a09e

: end

6. ASA5510.Inside

ASA5510.Inside#sh run

Building configuration...

Current configuration : 727 bytes

!

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

!

hostname ASA5510.Inside

!

boot-start-marker

boot-end-marker

!

!

no aaa new-model

memory-size iomem 15

ip cef

!

!

!

!

no ip domain lookup

!

multilink bundle-name authenticated

!

!

!

!

!

archive

log config

hidekeys

!

!

!

!

!

!

!

interface Ethernet0

no ip address

shutdown

half-duplex

!

interface FastEthernet0

ip address 172.16.1.1 255.255.255.0

speed auto

!

ip forward-protocol nd

ip route 0.0.0.0 0.0.0.0 172.16.1.10

!

!

no ip http server

no ip http secure-server

!

!

!

!

control-plane

!

!

line con 0

exec-timeout 0 0

logging synchronous

line aux 0

line vty 0 4

password cisco

login

!

end

四：測試

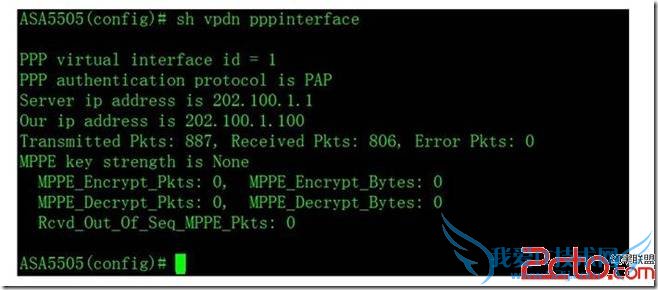

1. ASA5505通過PPPOE.Server獲得IP地址：

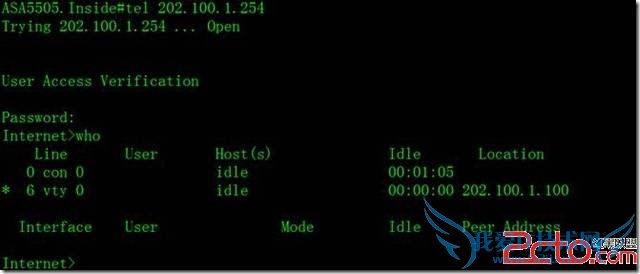

2. ASA5505.Inside測試上網：

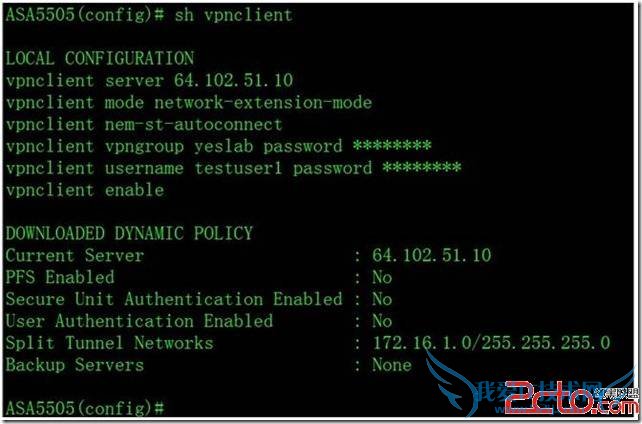

3. ASA5505作為EzVPN硬件客戶端的狀態：

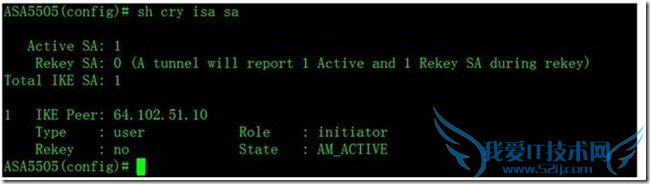

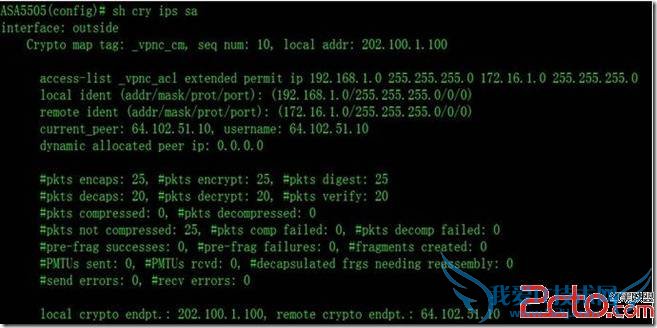

4. ASA5505設備上展示ISAKMP SA 和IPSEC SA：

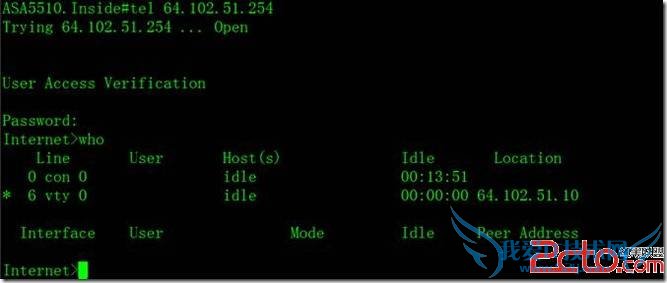

5. ASA5510.Inside測試上網：

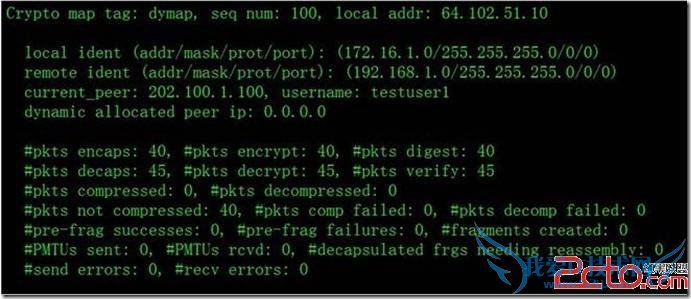

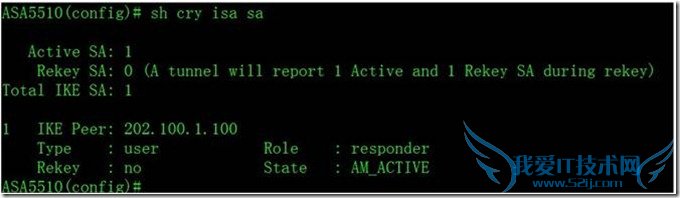

6. ASA5510設備上展示ISAKMP SA和IPSEC SA：

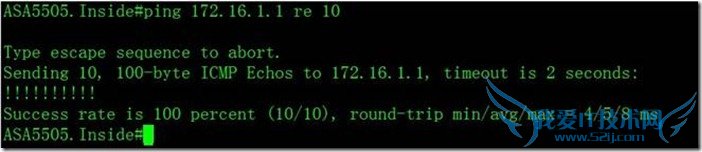

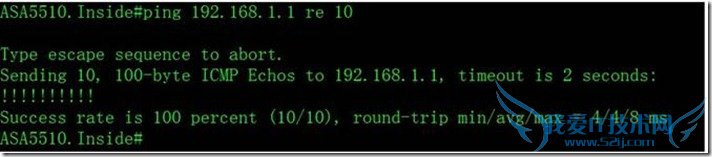

7. ASA5505.Inside和ASA5510.Inside之間互訪：

五：注意

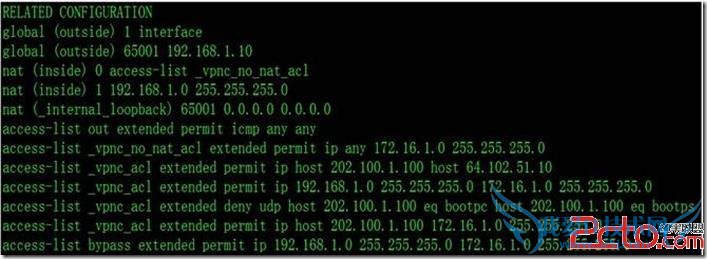

1. 在ASA5505上系統會自動添加一個BYPASS掉EzVPN感興趣流流量的ACL
