分享关于JBPM之请假流程Demo

时间:2013-03-10 17:59 来源: 翻译器在线作者:admin

紧接着昨天的demo完整的实现整个请假流程，大致的流程是这样的：员工提交请假申请，然后项目经理审批，如果项目经理审批通过且请假天数小于3天，则直接整个请假流程结束，如果项目经理审批通过且请假天数大于3天，则还需要总经理审批，总经理不管审批通过还是不通过，整个请假流程都结束。当然项目经理也可以审批不通过，此时员工可以再次提交请假申请，如此循环......

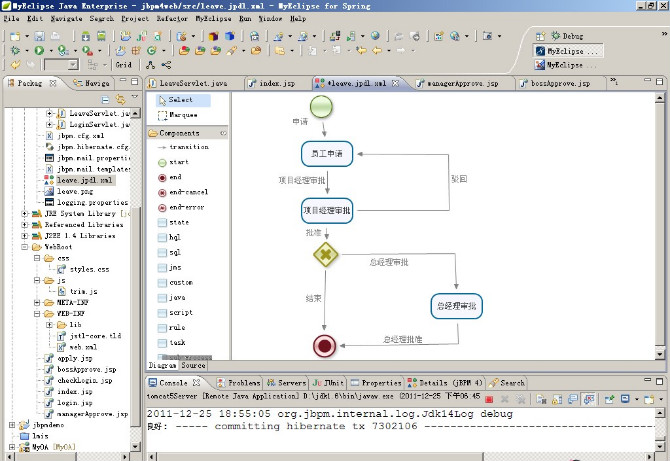

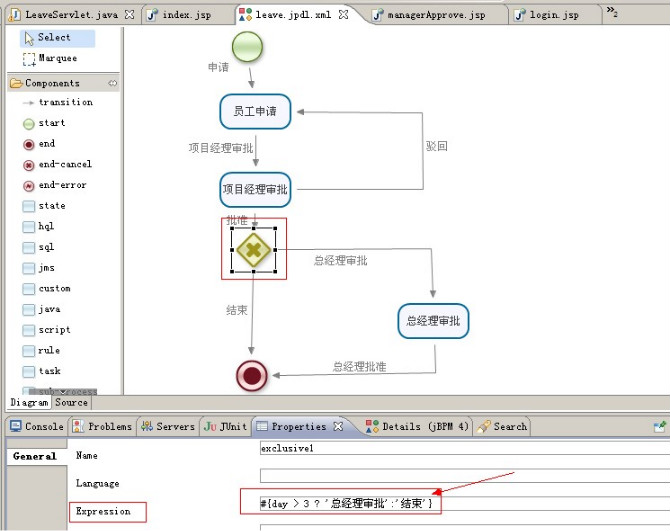

用jpdl.xml表示出来如图：

用jpdl.xml表示图

leave.jpdl.xml内容如下：
<?xml version="1.0" encoding="UTF-8"?>
<process name="leave" xmlns="">
   <start g="113,-2,48,48" name="start1">
      <transition g="-47,-17" name="申请" to="员工申请"/>
   </start>
   <task assignee="#{owner}" g="100,68,92,52" name="员工申请" form="LeaveServlet?opt=toApply">
      <transition g="-74,-8" name="项目经理审批" to="项目经理审批"/>
   </task>
   <task assignee="manager" g="100,155,92,52" name="项目经理审批" form="LeaveServlet?opt=toManagerApprove">
      <transition g="-31,-6" name="批准" to="exclusive1"/>
      <transition g="332,180;331,95:5,-10" name="驳回" to="员工申请"/>
   </task>
   <decision expr="#{day > 3 ? '总经理审批':'结束'}" g="117,226,48,48" name="exclusive1">
      <transition g="341,246:-130,8" name="总经理审批" to="总经理审批"/>
      <transition g="-28,-8" name="结束" to="end1"/>
   </decision>
   <task assignee="boss" g="298,301,92,52" name="总经理审批" form="LeaveServlet?opt=toBossApprove">
      <transition g="346,384:-114,-12" name="总经理批准" to="end1"/>
   </task>
   <end g="118,364,48,48" name="end1"/>

</process>
其中绿色标识的部分表示将任务分配给哪个角色，这里为了简单，项目经理和总经理的角色的用户名是写死的，只有员工用户名是绑定在owner这个变量上，
其中红色部分表示该任务对应的后台处理程序地址，opt参数是为了区分执行的是哪项操作。
LeaveServlet主要用来处理流程的各种操作，如发布新流程，删除流程、显示流程定义，流程实例、待办任务列表等等。
代码如下：
package servlet;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import entity.Process;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.jbpm.api.Configuration;
import org.jbpm.api.ExecutionService;
import org.jbpm.api.ProcessDefinition;
import org.jbpm.api.ProcessEngine;
import org.jbpm.api.ProcessInstance;
import org.jbpm.api.RepositoryService;
import org.jbpm.api.TaskService;
import org.jbpm.api.task.Task;

/**
* @author Lanxiaowei
* @createTime 2011-12-24 下午04:09:55
*/
public class LeaveServlet extends HttpServlet {
private ProcessEngine processEngine = null;
private RepositoryService repositoryService;
private ExecutionService executionService;
private TaskService taskService;
@Override
public void init() throws ServletException {
super.init();
processEngine = Configuration.getProcessEngine();
repositoryService = processEngine.getRepositoryService();
executionService = processEngine.getExecutionService();
taskService = processEngine.getTaskService();
}

public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//获取当前的操作标识符
String operate = request.getParameter("opt");
//从Session中取出当前用户名
String username = (String)request.getSession().getAttribute("username");
//发布新的流程定义
if("deploy".equals(operate)){
   repositoryService.createDeployment().addResourceFromClasspath("leave.jpdl.xml").deploy();
} else if("delete".equals(operate)){ //删除流程定义
   String id = request.getParameter("id");
   if(null != id && !"".equals(id)){
    try {
     repositoryService.deleteDeploymentCascade(id);
    } catch (Exception e) {
     request.setAttribute("infor", "该流程定义已删除，请勿重复刷新！");
    }
   }
} else if("start".equals(operate)){ //启动流程定义
   String id = request.getParameter("id");

   //根据流程定义id来启动一个流程定义,并传递参数
   if(null != id && !"".equals(id)){
    Map map = new HashMap();
    map.put("owner", username);
    executionService.startProcessInstanceById(id,map);
   }
} else if("apply".equals(operate)){ //处理申请
   String taskId = request.getParameter("taskId");

   if(null != taskId && !"".equals(taskId)){
    String owner = request.getParameter("owner");
    int day = Integer.parseInt(request.getParameter("day"));
    String reason = request.getParameter("reason");
    Map map = new HashMap();
    map.put("owner", owner);
    map.put("day", day);
    map.put("reason", reason);
    try {
     taskService.setVariables(taskId,map);
     taskService.completeTask(taskId);
    } catch (Exception e) {
     e.printStackTrace();
     request.setAttribute("infor", "该流程已完成，请勿重复刷新！");
    }
   }
} else if("toApply".equals(operate)){ //跳至申请页面
   String id = request.getParameter("id");
   response.sendRedirect("apply.jsp?id=" + id);
   return;
} else if("toManagerApprove".equals(operate)){ //跳至项目经理审批页面
   String taskId = request.getParameter("id");

   Task task = taskService.getTask(taskId);
   request.setAttribute("taskId", taskId);
   request.setAttribute("owner", taskService.getVariable(taskId, "owner"));
   request.setAttribute("day", taskService.getVariable(taskId, "day"));
   request.setAttribute("reason", taskService.getVariable(taskId, "reason"));
   request.getRequestDispatcher("/managerApprove.jsp").forward(request, response);
   return;

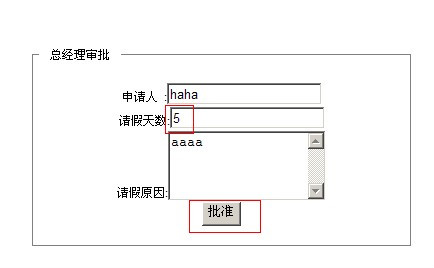

} else if("toBossApprove".equals(operate)){ //跳至总经理审批页面
   String taskId = request.getParameter("id");

   Task task = taskService.getTask(taskId);
   request.setAttribute("taskId", taskId);
   request.setAttribute("owner", taskService.getVariable(taskId, "owner"));
   request.setAttribute("day", taskService.getVariable(taskId, "day"));
   request.setAttribute("reason", taskService.getVariable(taskId, "reason"));
   request.getRequestDispatcher("/bossApprove.jsp").forward(request, response);
   return;
} else if("managerApprove".equals(operate)){ //项目经理审批
   String taskId = request.getParameter("taskId");
   String result = request.getParameter("result");
   result = new String(result.getBytes("ISO-8859-1"),"UTF-8");
   taskService.completeTask(taskId,result);
} else if("bossApprove".equals(operate)){ //总经理审批
   String taskId = request.getParameter("taskId");
   taskService.completeTask(taskId);
}
//流程定义列表
List<ProcessDefinition> pds = repositoryService.createProcessDefinitionQuery().list();
//流程实例列表
List<Process> pis = new ArrayList<Process>();
List<ProcessInstance> processInstances = executionService.createProcessInstanceQuery().list();
for (ProcessInstance pi : processInstances) {
   Process p = new Process(pi.getId(),pi.findActiveActivityNames().toString(),pi.getState());
   pis.add(p);
}
//当前用户的待办任务列表
List<Task> tks = taskService.findPersonalTasks(username);
request.setAttribute("pds", pds);
request.setAttribute("pis", pis);
request.setAttribute("tks", tks);
request.getRequestDispatcher("/index.jsp").forward(request, response);
}

@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doGet(req, resp);
}
}

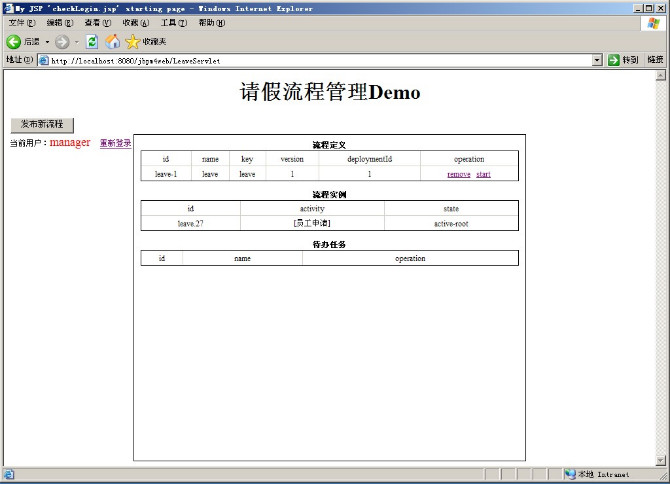

index.jsp页面就是流程管理界面：
效果如图：

index.jsp页面就是流程管理界面

代码如下：
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ include file="/checkLogin.jsp" %>
<%@ page isELIgnored="false" %>
<%@ taglib uri="/jstl" prefix="c" %>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
request.setAttribute("basepath",basePath);
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
    <base href="<%=basePath%>">
    <title>请假流程管理</title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="description" content="请假流程管理">
<link rel="stylesheet" type="text/css" href="css/styles.css"/>
</head>

<body>
      <script type="text/javascript">
          <c:if test="${not empty infor}">
              alert("${infor}");
          </c:if>
      </script>
       <center>
        <h2>请假流程管理Demo</h2>
       </center>
       <span>
           <input type="button" value="发布新流程" onclick="window.location='${basepath}LeaveServlet?opt=deploy';"/>
       </span><br/>
       <span style="font-size:12px;">当前用户：<font size="2" color="red">${sessionScope['username']}</font>
       <a href="javascript:void(0);" onclick="javascript:window.location='${basepath}login.jsp';return false;">重新登录</a></span>
       <div id="test">

           <table border="1" cellspacing="0" cellpadding="0">
               <caption><strong>流程定义</strong></caption>
               <tr>
                   <td>id</td>
                   <td>name</td>
                   <td>key</td>
                   <td>version</td>
                   <td>deploymentId</td>
                   <td>operation</td>
               </tr>
               <c:forEach items="${pds}" var="pd">
                   <tr>
                   <td>${pd.id}</td>
                   <td>${pd.name}</td>
                   <td>${pd.key}</td>
                   <td>${pd.version}</td>
                   <td>${pd.deploymentId}</td>
                   <td>
                       <a href="javascript:void(0);" onclick="javascript:window.location='${basepath}LeaveServlet?opt=delete&id=${pd.deploymentId}';return false;" >remove</a>
                       <a href="javascript:void(0);" onclick="javascript:window.location='${basepath}LeaveServlet?opt=start&id=${pd.id}';return false;" >start</a>
                   </td>
               </tr>
               </c:forEach>
           </table>

           <br/>


           <table border="1" cellspacing="0" cellpadding="0">
               <caption><strong>流程实例</strong></caption>
               <tr>
                   <td>id</td>
                   <td>activity</td>
                   <td>state</td>
               </tr>
               <c:forEach items="${pis}" var="pi">
                   <tr>
                   <td>${pi.id}</td>
                   <td>${pi.name}</td>
                   <td>${pi.state}</td>
               </tr>
               </c:forEach>
           </table>

           <br/>


           <table border="1" cellspacing="0" cellpadding="0">
               <caption><strong>待办任务</strong></caption>
               <tr>
                   <td>id</td>
                   <td>name</td>
                   <td>operation</td>
               </tr>
               <c:forEach items="${tks}" var="tk">
                   <tr>
                   <td>${tk.id}</td>
                   <td>${tk.name}</td>
                   <td>
                       <a href="javascript:void(0);" onclick="javascript:window.location='${basepath}${tk.formResourceName}&id=${tk.id}';return false;" >view</a>
                   </td>
               </tr>
               </c:forEach>
           </table>

       </div>
</body>
</html>

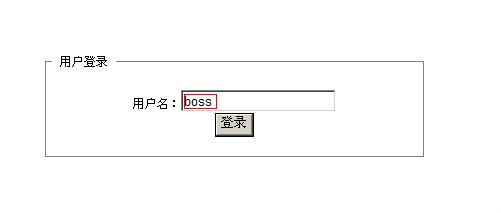

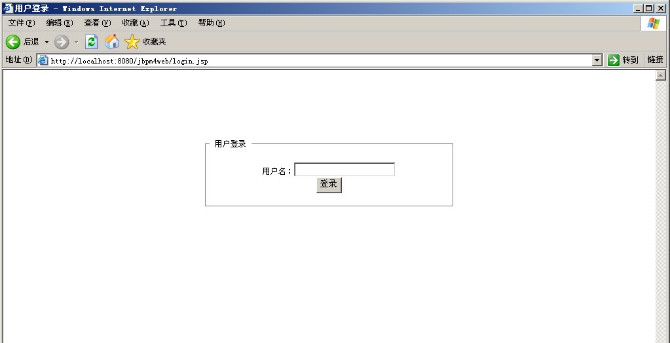

登录页面效果如图：

登录页面效果

简单起见，就只有一个用户名，代码如下：
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%@ page isELIgnored="false" %>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
request.setAttribute("basepath",basePath);
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
    <base href="<%=basePath%>">

    <title>用户登录</title>

<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="description" content="This is my page">
<link rel="stylesheet" type="text/css" href="css/styles.css"/>
<script type="text/javascript" src="js/trim.js"></script>
<script type="text/javascript">
function checkForm(){
      var username = document.loginForm.username;
      if(username.value && username.value.length > 0 && username.value.Trim().length > 0){
       return true;
      }
      alert("请输入用户名");
      username.focus();
      return false;
}
</script>
</head>
<body>
      <div class="center">
         <fieldset>
             <legend>  用户登录  </legend>
             <form name="loginForm" action="${basepath}loginServlet" method="post" onsubmit="return checkForm()">
                 用户名：<input type="text" name="username"/><br/>
               <input type="submit" value="登录"/>
             </form>
         </fieldset>
      </div>
</body>
</html>

用户登录后点击按钮发布新流程，界面效果如图：

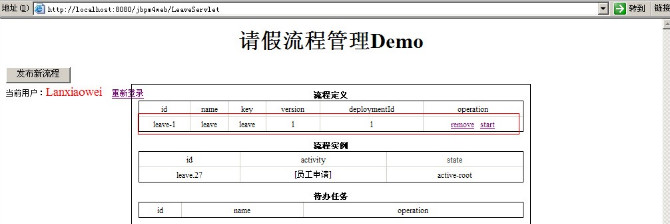

用户登录后点击按钮发布新流程，界面效果

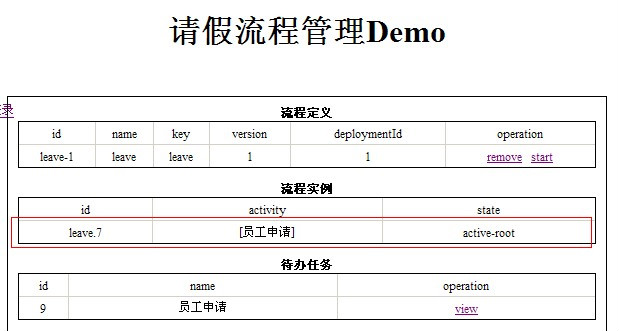

流程尚未启动，所以流程实例列表和待办任务列表为空，点击 start链接启动一个流程定义后效果如图：

点击 start链接启动一个流程定义后效果

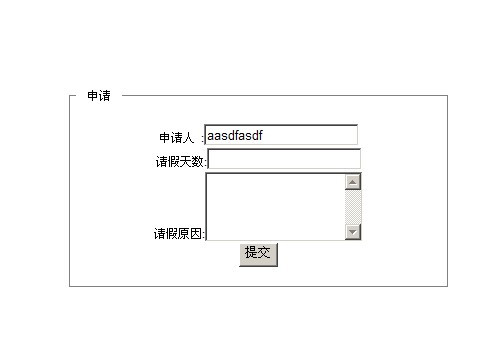

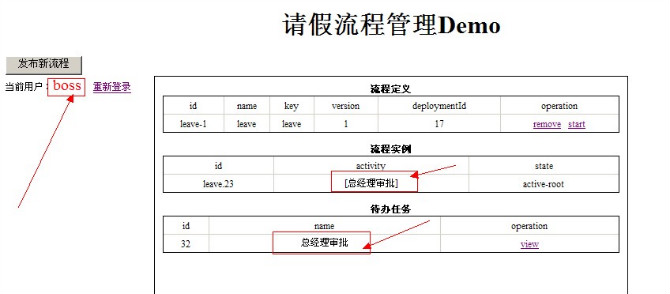

如图我们发现，点击start启动流程定义后，流程自动按照我们的流程定义xml文件中事先设计好的步骤从开始流转到员工申请了，而员工的待办任务也自动有了一条任务，点击view页面自动跳转到该task节点的form属性设定的后台处理程序链接地址，效果如图：

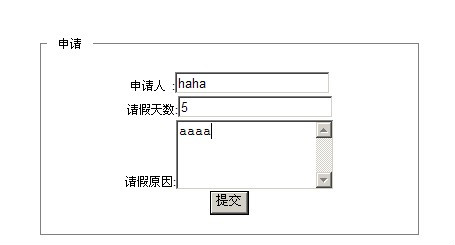

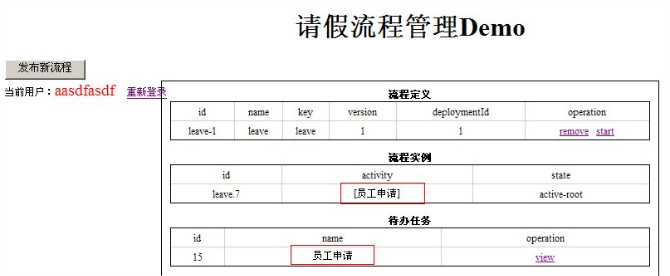

显示的员工请假申请需要填写的表单，员工填写表单，然后就自动流转到项目经理审批，

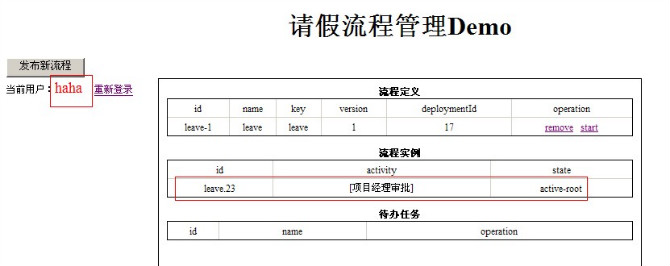

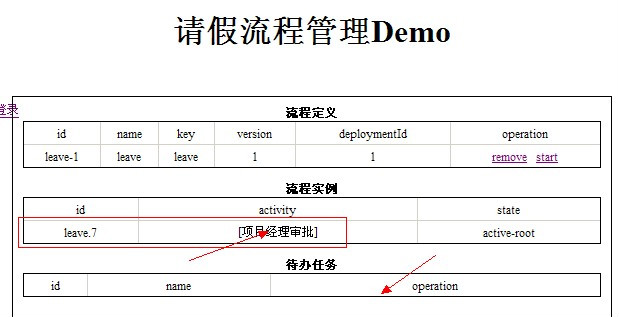

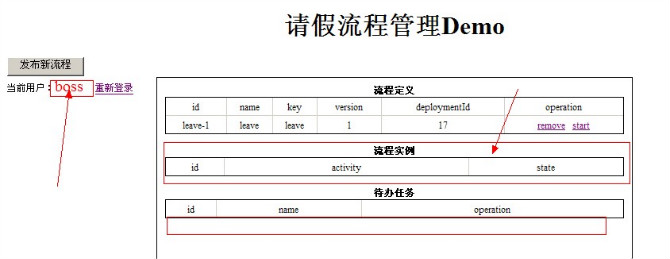

员工提交表单后，员工的待办任务就为空表明员工的任务完成，而此时流程也正确的流转到项目经理审批，我们登录项目经理的帐号查看验证：

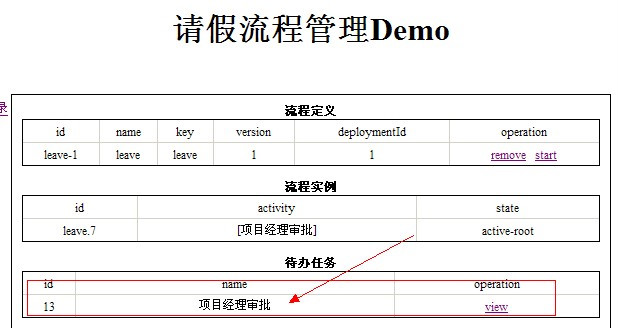

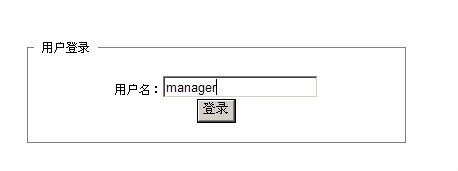

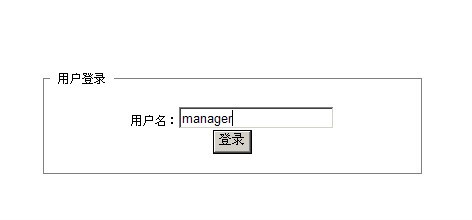

因为我们在jpdl.xml中是把项目经理审批这个任务分配给了manager这个用户，所以我们这里直接用manager登录测试，登录后：

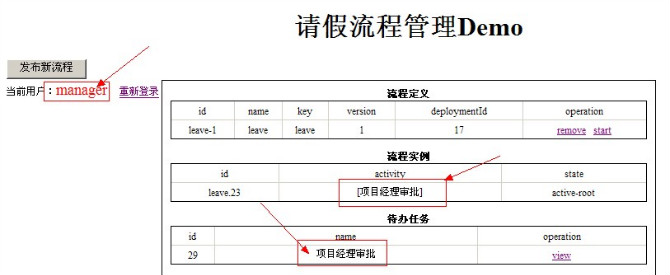

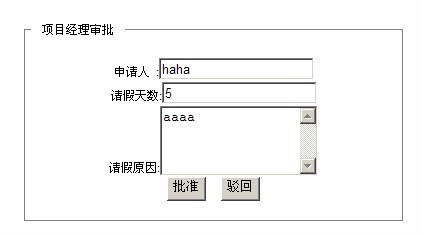

此时显示项目经理有一条待办任务，点击view就跳转到项目经理审批页面，这个跳转链接也是在task的form属性中绑定的：

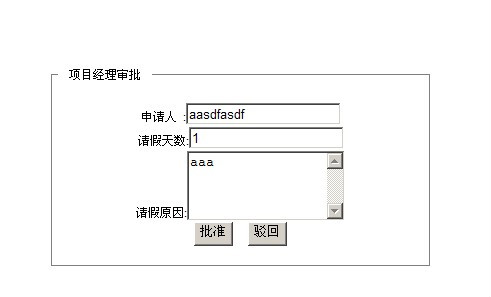

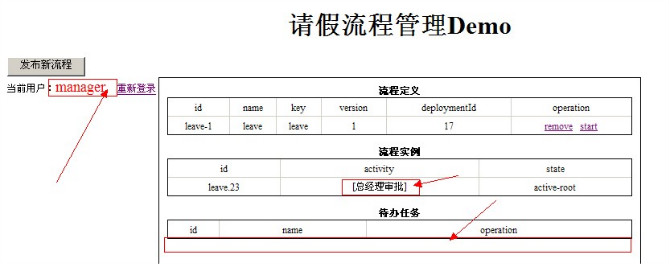

由于表单填写的是请假一天，所以如果项目经理审批通过，则整个流程结束，如果项目经理驳回申请，则流程状态又会回到员工申请，登录用户查看测试：

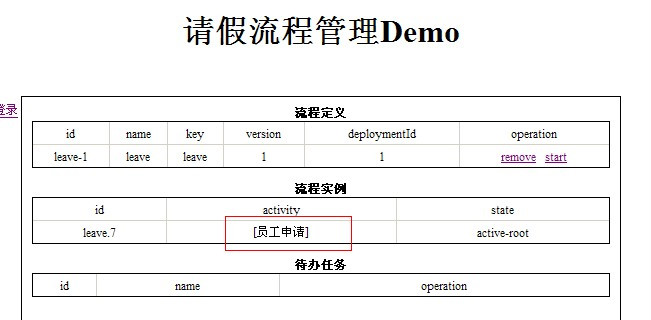

项目经理驳回后流程回退到员工申请，登录员工帐号查看：
